vibration monitoring systems

  IRD7400 is a Loop Powered Vibration Transmitter. It provides 4-20 mA output to PLC/DCS and is loop powered by the PLC/DCS. It can accept a variety of inputs (factory set) such as from an Accelerometer, Inductive Velocity Sensor or a Piezo Velocity Sensor. It also provides buffered time waveform output via BNC at its front. A Digital Panel Meter can be used for local display readout - IRD7400 provides 0-2.5 V DC output for it.

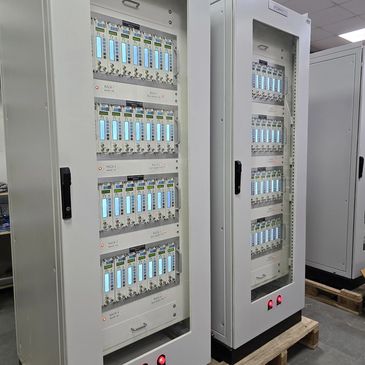

The IRD8800 Series is an API 670 compliant rack-based vibration and condition monitoring system designed for the protection of critical rotating assets such as turbines, compressors, pumps, motors, and fans. Its modular design and wide measurement capability make it suitable for both machinery protection and detailed diagnostics in demanding industrial environments.

• Rack-Based Modular Architecture

  • 5U height, available from 1–8 slots.

  • Hot-swappable API 670-compliant modules with redundant power supply capability (AC or DC).

• Comprehensive Parameter Coverage
  Dedicated modules for:

  • Relative Shaft Vibration (eddy current probes) – detects rotor unbalance, misalignment, rubs.

  • Absolute Vibration (case-mounted accelerometers/velocity sensors) – monitors bearing housing and casing movement.

  • Axial Shift – tracks thrust position to protect thrust bearings.

  • Differential Expansion – prevents rotor-to-casing contact during thermal transients.

  • Eccentricity, High-Frequency Bearing Defects, End Winding Vibration, Shell Expansion, Speed, Reverse Rotation, Temperature – enabling complete supervisory instrumentation for large machines.

• User-Programmable from Front Panel
  No PC required – operators can set full-scale ranges, sensitivity, alarm/trip limits, band-pass filters, and units directly via keypad.


• Displays: Dual 100-segment bar graph and alphanumeric digital readout showing instantaneous values, alarm/trip setpoints, and percentage-of-range for easy status interpretation.

• Outputs:

  • 4–20 mA isolated signals to DCS

  • MODBUS RTU/TCP-IP for plant automation

  • Buffered time waveform (BNC) for vibration analyzers and multi-channel diagnostics systems

• Integration: Supports direct connection to SCADA and advanced turbine diagnostic systems.


• Independent Alarm and Trip Relays for each channel, with field-selectable fail-safe modes.

• TX Fail Relay alerts for transducer faults (bias voltage deviations).

• Startup Bypass function to prevent false alarms during machine run-up.

• Calibration traceable to national standards, ensuring measurement accuracy.


• Complies with API 670 standards for machinery protection.

• Tested to IEC/IS standards for heat, humidity, vibration, and EMC/EMI.

• Operating temperature: 0°C to 65°C; humidity up to 95% non-condensing.


Summary:
The IRD8800 Series provides a complete API 670-compliant condition monitoring and protection solution for turbines and compressors. By integrating relative and absolute vibration, axial position, thermal expansion, and other supervisory parameters into a single rack-based system with advanced communication and diagnostics capabilities, it enables early fault detection, optimized maintenance planning, and reliable trip protection — essential for avoiding costly unplanned outages in critical rotating equipment.

Empowering Predictive Maintenance with OLIVER 🚀
OLIVER is a homegrown, user-friendly software built on decades of expertise in vibration-based condition monitoring.

Beyond vibration, it integrates parameters like speed, temperature, pressure, and flow, while seamlessly connecting via MODBUS, Profinet, HART, OPC UA, and more.

From live values and trends to advanced plots like orbit, waterfall, and Bode, OLIVER turns raw data into actionable insights—helping you make smarter maintenance decisions.

Available in three tailored variants—Basic, Advanced, and Extreme—it adapts to your channel count, interface needs, and project requirements, even predicting time-to-failure in its most advanced form.

🔍 Whether for preventive or predictive maintenance, OLIVER is the right addition to any vibration or condition monitoring system.

 IRD7100 Series of Machinery Protection Transmitters (MPT) are designed for use in Harsh and Dusty Industrial Environments. These transmitters can provide 24x7 round the clock monitoring, transmission and protection from ill effects of high vibration.

• Available in Single, Dual and Four Channel Configurations
• Available in Aluminium Die Cast, Polycarbonate and Explosion Proof Enclosures
• Industry Standard 4-20 mA DC output which can be connected to Control Room DCS/PLC/SCADA for Trending
• Industry Standard 0-5 V DC Output which can be connected to an External Display
• IP65 rated enclosures and thus Transmitter can be mounted very close the machine - thereby reducing cable costs
• Alarm and Trip Relay for protection from High and Very High Vibration

 IRD8800 is a Series of Vibration Monitoring System which is API 670 Compliant and is used to Monitor and Protect Critical Assets of a Plant such as Motors, Pumps, Fans, Turbines, Compressors, etc.

Microprocessor Based and User Programmable via Push Buttons for Full Scale Range, Sensitivity, Alarm, Trip and Several other parameters

Alphanumeric Display of Instantaneous value along with configurable Bar Graph Display

Hot-Swappable Modules compliant to API 670. System can accept Two Independent Power Supplies thereby providing Redundancy in Power Supply

Industry Standard Outputs - 4-20 mA, Redundant MODBUS RTU/TCP-IP, Alarm and Trip Relay Contacts, Buffered Time Waveform via BNC
