PROXIMITY SENSORS

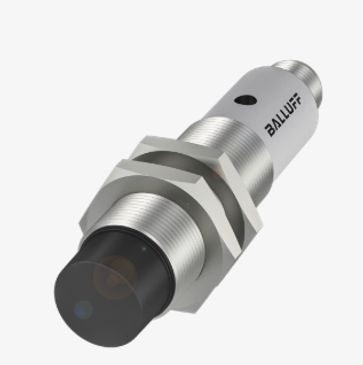

Balluff Inductive Sensor BES 515-123-S4-C (Order Code: BES02E1):

• Inductive proximity sensor, standard per IEC 60947-5-2

• Approvals: CE, UKCA, cULus, WEEE compliant

• Function indicator: ✅ Yes | Power indicator: ❌ No


• Operating voltage: 10–30 VDC

• Rated operating voltage: 24 VDC

• Rated operating current: 200 mA

• Switching output: PNP, NO/NC selectable

• Load capacitance: max. 1 µF

• Switching frequency: 200 Hz

• Short-circuit protection & polarity reversal protection

• Voltage drop (max.): 2.5 V

• Residual current: max. 80 µA


• Operating temperature: -40…+85 °C

• IP rating: IP68 (dust & waterproof)

• Shock resistance: 30 g / 11 ms (EN 60068-2-27)

• Vibration resistance: 55 Hz, 1 mm amplitude, 3×30 min (EN 60068-2-6)


• Protection class: II

• Rated insulation voltage: 250 V AC

• MTTF (40 °C): 1015 years (theoretical reliability value)


• Housing: Stainless steel 1.4305

• Sensing face: PA12

• Dimensions: Ø18 × 83 mm

• Mounting: Non-flush, tightening torque 45 Nm

• Connection: M12x1 Male, 4-pin, A-coded


• Rated sensing distance (Sn): 8 mm

• Assured sensing distance (Sa): 6.5 mm

• Real switching distance (sr): 8 mm

• Repeat accuracy: ≤ 5% of Sr

• Hysteresis: ≤ 15% of Sr

• Temperature drift: ≤ 10% of Sr
