LOOP CALIBRATORS
loop calibrator
MA/mv calibrator
MA/mv calibrator

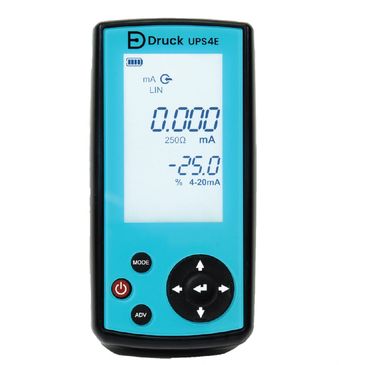

The UPS4E Loop Calibrator is built for precision and portability. Designed for one-handed operation, it simplifies loop testing, device calibration, and maintenance with:
✅ 0–24 mA measure/source with 0.01% accuracy
✅ Dual mA and % readout (linear & flow)
✅ Step, span, valve check, ramp & datalogging
✅ Built-in 24V loop power & HART compa
The UPS4E Loop Calibrator is built for precision and portability. Designed for one-handed operation, it simplifies loop testing, device calibration, and maintenance with:
✅ 0–24 mA measure/source with 0.01% accuracy
✅ Dual mA and % readout (linear & flow)
✅ Step, span, valve check, ramp & datalogging
✅ Built-in 24V loop power & HART compatibility
✅ Rugged IP54 design, 100,000-point data memory
✅ USB connectivity for firmware and data export
Ideal for field engineers working in process control and instrumentation, the UPS4E is a compact powerhouse that gets the job done—anytime, anywhere.
MA/mv calibrator
MA/mv calibrator
MA/mv calibrator
Application
Ideal for calibrating indicators, controllers, transmitters,
receivers and mA / mV measuring instruments.
Features
· Graphical Display
· Microcontroller Based
· 24V Loop Power Supply for Transmitters
· Simulation and Measurement of mV / mA
· Dual display for source and measure
· Feather Touch Key Pad
