pressure calibrator

 With the symbiosis of a high performance pressure generator and fast intuitive user interface, the robust DPI 611 brings handheld pressure calibration to a new level

50% smaller and 33% lighter than DPI 610

Generates 0 to 20 bar in less than 30 seconds

Creates 95% vacuum

Pressure measurement is twice as accurate

Three times better electrical accuracy

Simplified touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage

Fast, three touch set-up for any application

Calculates PASS/FAIL errors, documents results and interfaces with Calibration Software

Our latest portable is a battery-powered, self-contained manual pressure calibrator capable of pressure generation, fine control, and loop measurement. Most importantly, it has been designed for instrument technicians using input from those working in the field, using input from pressure calibrator users indicated that performance was vital.

The DPI610E retains the iconic handle, the ease of use, and the robust, reliable design of its predecessors, but offers exciting new functionality including an internal barometer, with a barometer port for easy calibration. In addition to this, the DPI610E contains an enhanced battery, offering over 60 hours continual use from a single, 2 hour charge.From its intuitive interface to its ergonomic design, the DPI610E delivers an optimal user experience. Physical buttons and a touchscreen mean you can use it with or without gloves. An integrated handle and strap make it easier to carry whether you’re on the ground or at heights. And with a built-in hand pump that makes generating pressure effortless, your workday is a lot more productive.

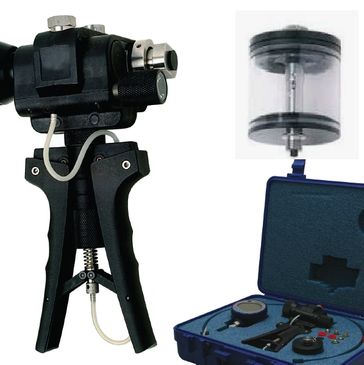

The PV411A, developed by Druck (GE Sensing), is a versatile, high-quality multi-function hand pump that integrates four conventional hand pumps into a single rugged, portable design. It is engineered for precise pressure and vacuum generation in both pneumatic and hydraulic applications.

• Hydraulic pressure generation: up to 10,000 psi (700 bar)

• Pneumatic pressure generation: up to 600 psi (40 bar)

• Vacuum generation: up to 28.5 inHg (720 mmHg)

• Fine low-pressure control: precision adjustments across modes


• Vacuum priming function: eliminates trapped air during hydraulic use.

• Highly sensitive volume adjuster: ensures fine pressure control for hydraulic, pneumatic, vacuum, and low-pressure operations.

• Overpressure protection: tamper-proof, adjustable relief valve (300–10,000 psi).

• Hydraulic media compatibility: works with distilled water and/or high-viscosity mineral oil.

• Reservoir system: removable 100 cc reservoir (optional 200 cc), disconnectable without draining.

• Reservoir safety vent: spring-loaded cover vents if pressure > 8 psi.

• Swivel head (240°): for optimal viewing of reference gauges.

• Durability: internal PTFE anodized parts reduce wear; stainless steel and anodized aluminum construction.

• Ergonomic design: lightweight (2.5 lb) with comfortable grip.


• Connections: 1/4 in NPT female (pressure), 1/4 in BSP female (reservoir)

• Dimensions: 10.2 in × 5.3 in × 3.7 in

• Weight: 2.5 lb (1.1 kg)


• Heavy-duty case with foam insert

• High-pressure hose (10,000 psi, 3 ft length)

• Multiple NPT adapters (1/4" and 1/8")


👉 In short: The PV411A Four-in-One hand pump is a field-proven, compact, and ergonomic calibration tool, capable of generating hydraulic, pneumatic, and vacuum pressures with fine control and built-in safety, making it highly suitable for pressure calibration and testing across industrial environments.

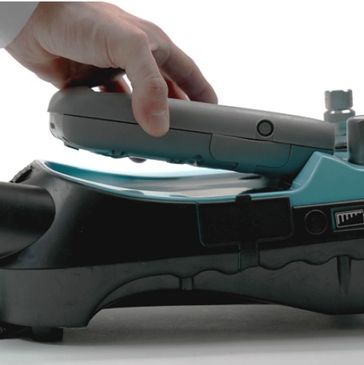

The PV624 is a portable hybrid pressure controller base station that integrates manual pressure generation with automatic pressure generation and control. It is part of the Genii Advanced Modular Calibration System, working with DPI620G electrical calibrator and PM620/PM620T interchangeable pressure modules.

It is designed for field pressure testing and calibration, offering robustness, modularity, and precise setpoint control.

• Hybrid Pressure Control: Automatic switching between manual and automatic pressure generation for speed and accuracy.

• Range: –0.9 barg (–13 psig) to 20 barg (300 psig).

• Quick Setpoint Control: Fast pressure ramping via hand pump + automatic stabilization.

• Barometer Integration: Built-in barometer for pseudo pressure measurement (gauge ↔ absolute conversion).

• Connectivity: Physical or optional Bluetooth® connection to DPI620G.

• Quick-Fit Pressure Connections: Tool-less, finger-tight up to 20 bar.

• Calibration Wizard: Autonomous procedure creation, storage, and pass/fail analysis with export capability.

• Rugged Design: IP54 protection, suitable for harsh environments.

• Battery Pack: Field-replaceable, >8 hrs operation per charge.


• Hybrid Pressure Range: –0.9 to 20 barg (–13 to 300 psig)

• Compatible Pressure Modules: PM620/PM620T (0.7 bar to 20 bar FS, gauge & absolute)

• Stability: 50 ppm of full scale

• Speed to Stable Setpoint:

  • 0 → 2 bar into 15 ml: <15 sec

  • 0 → 20 bar into 50 ml: <90 sec

• Max Leak Rate Compensation: 60 mbar/min at 20 bar into 50 ml

• Barometer Range: 800–1100 mbar abs (uncertainty <0.5 mbar, drift <0.33 mbar/yr)

• Battery Life: >8 hrs typical (charge time ~8 hrs)

• Operating Temp: 0 to +50 °C

• Ingress Protection: IP54

• Weight: 3.4 kg (excluding DPI620G)


• Field pressure testing & calibration

• Supporting large test volumes and leak-compensated stability

• Used across industries requiring portable, modular calibration (e.g., pharma, process plants, instrumentation labs).

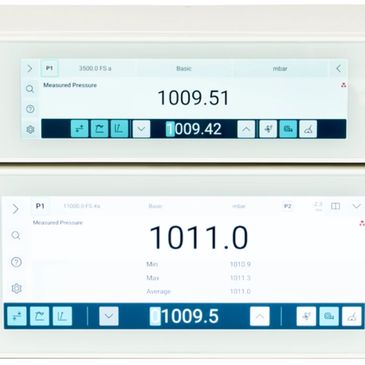

The PACE5000E (single-channel) and PACE6000E (dual-channel) are high-performance modular pressure controllers designed for calibration, testing, and R&D across industries like aerospace, energy, healthcare, pharmaceuticals, transport, semiconductors, and manufacturing.

• Speed & Stability:

  • Achieves a stable setpoint in 1.5 seconds.

  • Control stability up to 0.001% FS.

• Accuracy:

  • Reference-grade sensors with uncertainties as low as 5 Pa.

  • Long-term measurement stability reduces recalibration needs.

• Flexible Modular Design:

  • Uses interchangeable PACE Control Modules (CM0–CM3) for different pressure ranges and precision levels.

  • Only modules require recalibration—chassis remains in place.

  • One chassis covers low to high pressure ranges.

• User Interface:

  • Large color touchscreen with intuitive menus, context-sensitive help, and HDMI output for external display.

  • Simplified calibration workflows.

• Connectivity & Standards:

  • Multiple communication interfaces: USB, RS232, Ethernet (LXI), GPIB (optional).

  • Compliant with SCPI-99, NI LabVIEW drivers, and automation standards.

• Test Functions:

  • Leak Test – detects system leakage.

  • Burst Test – determines rupture/burst point of test items.

• Software Integration:

  • Fully compatible with 4Sight2 Calibration Management Software for automated, paperless calibration with audit-ready records.


• CM0 (Standard): ±0.02% Rdg + 0.02% FS

• CM1 (High Precision): ±0.01% Rdg + 0.01% FS

• CM2 (Premium): ±0.005% Rdg + 0.005% FS (stability: 0.001% FS)

• CM3 (Reference): ±0.001–0.0015% FS (highest accuracy for reference labs)


• Pressure Ranges: 25 mbar g to 211 bar a (depending on module).

• Media: Dry, oil-free, non-combustible gases (air or nitrogen recommended).

• Operating Temp.: 0–55 °C; Calibrated range: 15–45 °C.

• Weight: PACE5000E – 5.6 kg; PACE6000E – 7.2 kg.

• Dimensions:

  • PACE5000E: 440 × 88 × 320 mm (2U)

  • PACE6000E: 440 × 132 × 320 mm (3U)


• Precision calibration of pressure transmitters, gauges, transducers, and switches.

• End-of-line production testing in manufacturing.

• R&D and laboratory pressure control applications.

• Leak and burst testing for product validation.

• Accredited quality calibration using Druck’s highest-grade modules.


✅ In short, the PACE5000E & 6000E deliver fast, accurate, modular, and flexible pressure control solutions with strong integration for automated calibration systems, making them suitable for both industrial and laboratory environments.

A high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications. Modularity increases user flexibility, reduces downtime and lowers overall cost of ownership.

Features:

Market leading speed to set point, pressure stability in large volumes

No overshoot of set point

Up to 210 bar (3000 psi/21 MPa) gauge and absolute

Precision to 0.001% FS over calibrated temperature range

Long-term stability to 0.0025% FS per annum

28 selectable pressure units and 4 user defined units
