gas analysers
zirconia oxygen analyser
compact DewPoint Transmitter
zirconia oxygen analyser
Fuji - Insitu Zirconia Oxygen Analyser
Ideal for Combustion Control
User-replaceable zirconia element No gas sampling required Enhanced safety design Response speed from 4 to 7 seconds
Dust- and water-proof, and/or flameproof enclosure
Key operation available on front cover (ZKMA and ZKME)
HART communication
DewPoint Transmitter
compact DewPoint Transmitter
zirconia oxygen analyser
The compact EE355 sensor measures dew point temperature (Td) down to -60 °C (-76 °F) at pressure up to 80 bar
(1 160 psi). Besides Td, the sensor supplies frost point temperature (Tf) and volume concentration (Wv) data. It is ideal for
monitoring compressed air networks and industrial drying processes.
compact DewPoint Transmitter
compact DewPoint Transmitter
compact DewPoint Transmitter
EE371 Compact Dew Point Sensor
Application
The EE371 is designed for accurate dew point monitoring in compressed air systems and industrial process control, with a measuring range of –60 to +60 °C Td (–76 to +140 °F Td) and a pressure rating up to 100 bar (1450 psi).
🔹 Key Measurement Capabilities
- Measurands: Dew point (Td), Frost point (T

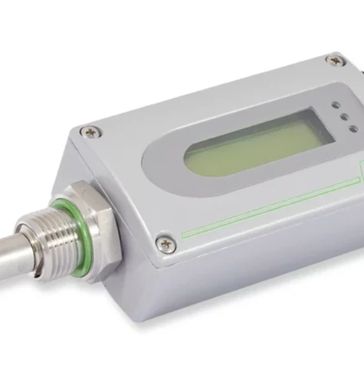

EE371 Compact Dew Point Sensor
Application
The EE371 is designed for accurate dew point monitoring in compressed air systems and industrial process control, with a measuring range of –60 to +60 °C Td (–76 to +140 °F Td) and a pressure rating up to 100 bar (1450 psi).
🔹 Key Measurement Capabilities
- Measurands: Dew point (Td), Frost point (Tf), or Volume concentration (Wv).
- Accuracy: ±2 °C Td.
- Response time (t90): <5 min for step changes (–5 to –50 °C Td); <20 s for reverse step.
- Concentration range: 20…200,000 ppm.
🔹 Outputs & Configuration
- Two freely selectable analogue outputs (0–10 V or 4–20 mA).
- LCD display with backlight (optional).
- EE-PCS configuration software (free) and optional adapter for setup and adjustment.
🔹 Construction & Protection
- Housing: Aluminium die-cast (AlSi9Cu3), compact design with swirling front end.
- Protection: IP65.
- Process connection: Stainless steel, G 1/2" ISO or 1/2" NPT.
- Pressure rating: 20 bar or 100 bar versions.
- Filter: Stainless steel sintered.
🔹 Calibration
- Accredited traceable calibration according to ISO/IEC 17025 (from E+E calibration lab, Austria).
- ISO 9001 calibration certificate also available.
🔹 Electrical & Environmental Data
- Power supply: 15–30 V DC.
- Consumption: 40–80 mA (up to 140 mA during auto-calibration).
- Operating temperature (medium): –40 to +70 °C.
- EMC compliance: EN 61326 (industrial environment), FCC Part 15 Class B.
🔹 Accessories
- Sampling cells:
- Basic cell (0–64 bar)
- With bleed screw & quick connector (0–10 bar)
- For atmospheric dew point measurement (0–10 bar)
- Basic cell (0–64 bar)
✅ In essence: The EE371 is a high-accuracy, robust, and configurable dew point sensor for compressed air and process gas applications, combining precision, long-term stability, and compliance with international calibration standards.
flue gas analyser
Thermal conductivity gas analyser
compact DewPoint Transmitter
NOX,SO2,CO,CO2 and O2 ANALYZER
Simultaneous measurement of 5 Components in Flue Gas
Single Beam with Sample Switching Method
● Fuji’s unique and innovative single-beam NDIR ensures excellent zero stability
● Easy to operate with large LCD menu driven
● Easy to maintain and all maintenance from the front side of the cubicle is available
●
NOX,SO2,CO,CO2 and O2 ANALYZER
Simultaneous measurement of 5 Components in Flue Gas
Single Beam with Sample Switching Method
● Fuji’s unique and innovative single-beam NDIR ensures excellent zero stability
● Easy to operate with large LCD menu driven
● Easy to maintain and all maintenance from the front side of the cubicle is available
● Zirconia oxgen sensor realizes long-term stability and reduction of maintenance requirements (Paramagnetic oxygen sensor available as option)
Thermal conductivity gas analyser
Thermal conductivity gas analyser
Thermal conductivity gas analyser
Optimum for concentration measurement for H2, Ar and He
Operation facilitated with easy-to-read,large LCD panel.
Free voltage on 100 to 240V AC, 50/60Hz.
OPTIONS:
* Automatically calibrates zero/span.
* Computes and corrects influence by other gases.
* Two measuring range.
* Gas concentration alarm output. * RS232C (MODBUS) communication.
